Oil Filter
W 712/54

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

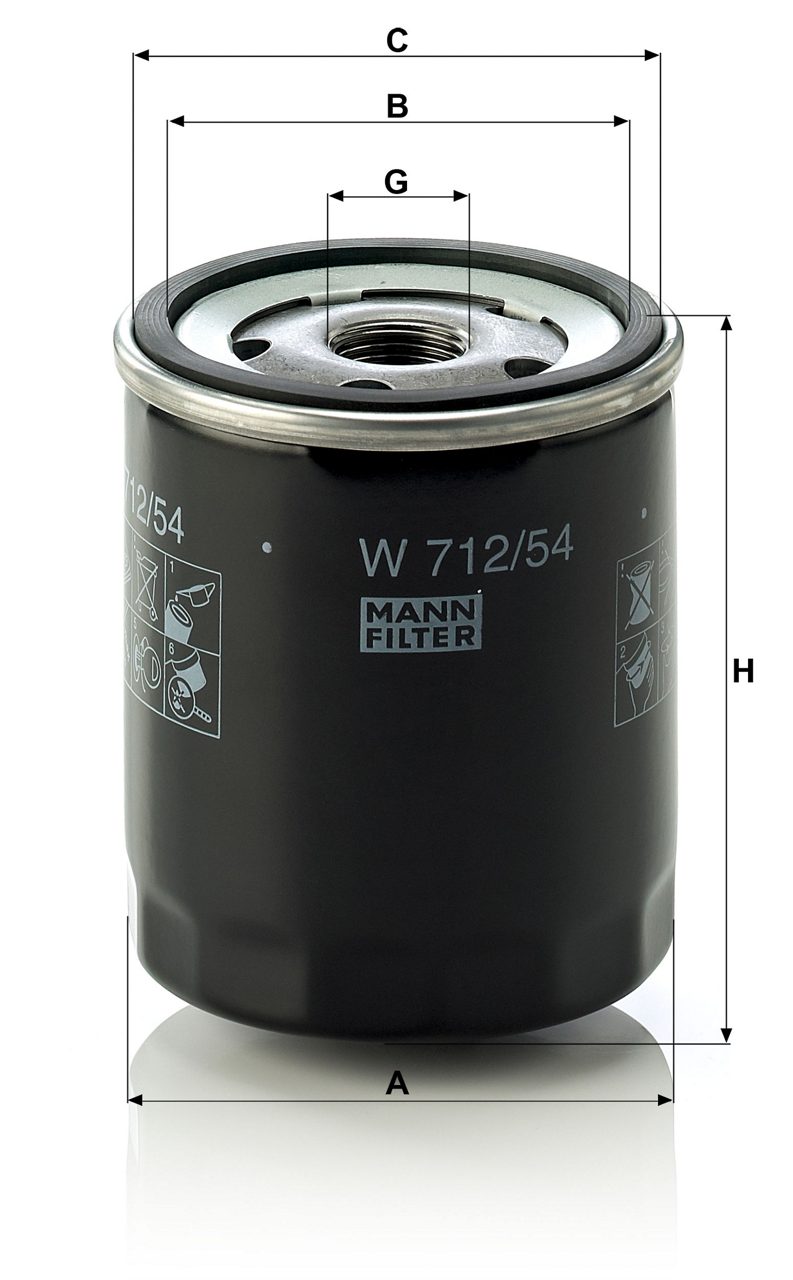

  • A = 76 mm; B = 62 mm; C = 71 mm; G = 3/4-16 UNF; H = 93 mm
  • Filter with anti-drain valve

GTIN Code: 4011558731106

Product Details

Product Image W712/54_MANN-FILTER

Product Image W712/54_MANN-FILTER
A 76 mm
B 62 mm
C 71 mm
G 3/4-16 UNF mm
H 93 mm
Bypass Valve Opening Pressure 1
Number of anti-drain back valve 1

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.0 (6H)
Oil Filter AER,..HT,LD,LL,NV,UC 999 37 50 05/97 → 06/04
Model Type 1.0 (6H)
Filter Type Oil Filter
Engine Code AER,..HT,LD,LL,NV,UC
ccm 999
kW 37
HP 50
Year of Manufacture 05/97 → 06/04

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.0 Oil Filter ARV, ATY, AQV 999 37 50 09/99 → 10/02
1.4 Oil Filter AZE, AZF - 44 60 06/00 → 03/03
1.4 Oil Filter AME, AQW, ATZ - 50 68 09/99 → 01/03
Model Type 1.0
Filter Type Oil Filter
Engine Code ARV, ATY, AQV
ccm 999
kW 37
HP 50
Year of Manufacture 09/99 → 10/02
Model Type 1.4
Filter Type Oil Filter
Engine Code AZE, AZF
ccm -
kW 44
HP 60
Year of Manufacture 06/00 → 03/03
Model Type 1.4
Filter Type Oil Filter
Engine Code AME, AQW, ATZ
ccm -
kW 50
HP 68
Year of Manufacture 09/99 → 01/03

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.4 (1U) Oil Filter AMD 1397 44 60 04/99 → 07/04
1.4 (1U) Oil Filter AME 1397 50 68 01/00 → 07/04
Model Type 1.4 (1U)
Filter Type Oil Filter
Engine Code AMD
ccm 1397
kW 44
HP 60
Year of Manufacture 04/99 → 07/04
Model Type 1.4 (1U)
Filter Type Oil Filter
Engine Code AME
ccm 1397
kW 50
HP 68
Year of Manufacture 01/00 → 07/04

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
1.0
Oil Filter AER/.HT/LD/LL/NV/UC - 37 50 10/98 → 05/05
Model Type 1.0
Filter Type Oil Filter
Engine Code AER/.HT/LD/LL/NV/UC
ccm -
kW 37
HP 50
Year of Manufacture 10/98 → 05/05

  • 047 115 561 B
  • 047 115 561 G

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 712/54

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

  • wrench removal tool LS 7
Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
