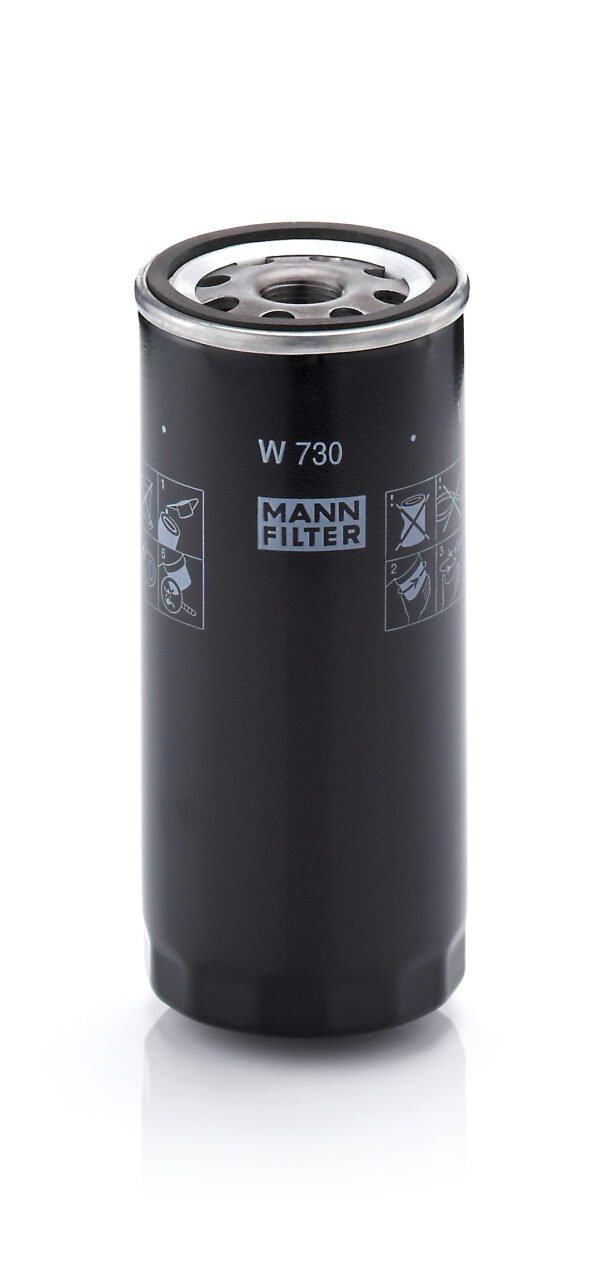

Oil Filter
W 730

About this item

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

  • A = 76 mm; B = 62 mm; C = 71 mm; G = M20x1.5; H = 170 mm

GTIN Code: 4011558705503

Product Details

A 76 mm
B 62 mm
C 71 mm
G M20x1.5 mm
H 170 mm
Bypass Valve Opening Pressure 2.2

Model Type Filter Type Engine Code ccm kW HP Year of Manufacture
4.5 Oil Filter M 28 4420 177 241 09/77 → 08/82
4.7 S Oil Filter M 28.12 4608 221 301 09/79 → 07/83
4.7 S Oil Filter M 28.22 4608 228 310 08/83 → 07/86
5.0 GT Oil Filter M 28.47 4957 243 330 01/89 → 07/91
5.0 S Oil Filter M 28.46 4957 212 288 09/85 → 05/94
5.0 S Oil Filter M 28.42 4898 235 320 08/86 → 07/91
5.0 S4 Oil Filter M 28.42 4957 235 320 08/86 → 07/91
5.4 GTS Oil Filter M 28.50 5397 257 350 08/91 → 11/95
Model Type 4.5
Filter Type Oil Filter
Engine Code M 28
ccm 4420
kW 177
HP 241
Year of Manufacture 09/77 → 08/82
Model Type 4.7 S
Filter Type Oil Filter
Engine Code M 28.12
ccm 4608
kW 221
HP 301
Year of Manufacture 09/79 → 07/83
Model Type 4.7 S
Filter Type Oil Filter
Engine Code M 28.22
ccm 4608
kW 228
HP 310
Year of Manufacture 08/83 → 07/86
Model Type 5.0 GT
Filter Type Oil Filter
Engine Code M 28.47
ccm 4957
kW 243
HP 330
Year of Manufacture 01/89 → 07/91
Model Type 5.0 S
Filter Type Oil Filter
Engine Code M 28.46
ccm 4957
kW 212
HP 288
Year of Manufacture 09/85 → 05/94
Model Type 5.0 S
Filter Type Oil Filter
Engine Code M 28.42
ccm 4898
kW 235
HP 320
Year of Manufacture 08/86 → 07/91
Model Type 5.0 S4
Filter Type Oil Filter
Engine Code M 28.42
ccm 4957
kW 235
HP 320
Year of Manufacture 08/86 → 07/91
Model Type 5.4 GTS
Filter Type Oil Filter
Engine Code M 28.50
ccm 5397
kW 257
HP 350
Year of Manufacture 08/91 → 11/95

  • 928.107.201.03
  • 928.107.201.05
  • 928 107 201 07
  • 928.107.201.04

No data available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W 730

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183

  • wrench removal tool LS 7
Oil Filter Content

Our engine oil filters work hard so your engine doesn’t have to

This crucial engine component ensures your engine functions smoothly and at peak performance. At MANN-FILTER we understand how to get the best out of every engine. And it starts with optimum filtration.

In the automotive aftermarket world prevention is always better than cure. Foresight and knowledge can save you – and your customers – time, money and hassle. Once a particle of soot or dust has got into the engine oil it starts to scratch the surfaces it comes into contact with, turning your lubricant being more abrasive. Just changing the oil isn’t enough – you also need to change the filter. Frequent oil filter changes prevent damage and keep your engine oil filter function at optimum levels.

Frictionless functionality. Optimal performance.

ANN-FILTER workshop partner installing an oil filter in a car
  • Longevity – A build-up of residue in engine oil can damage other components, but filtered, clean oil keeps things working at peak performance
  • Protection – Safeguards your engine parts from wear and tear
  • Reliability – Ensures your engine can function well, even in cold conditions
